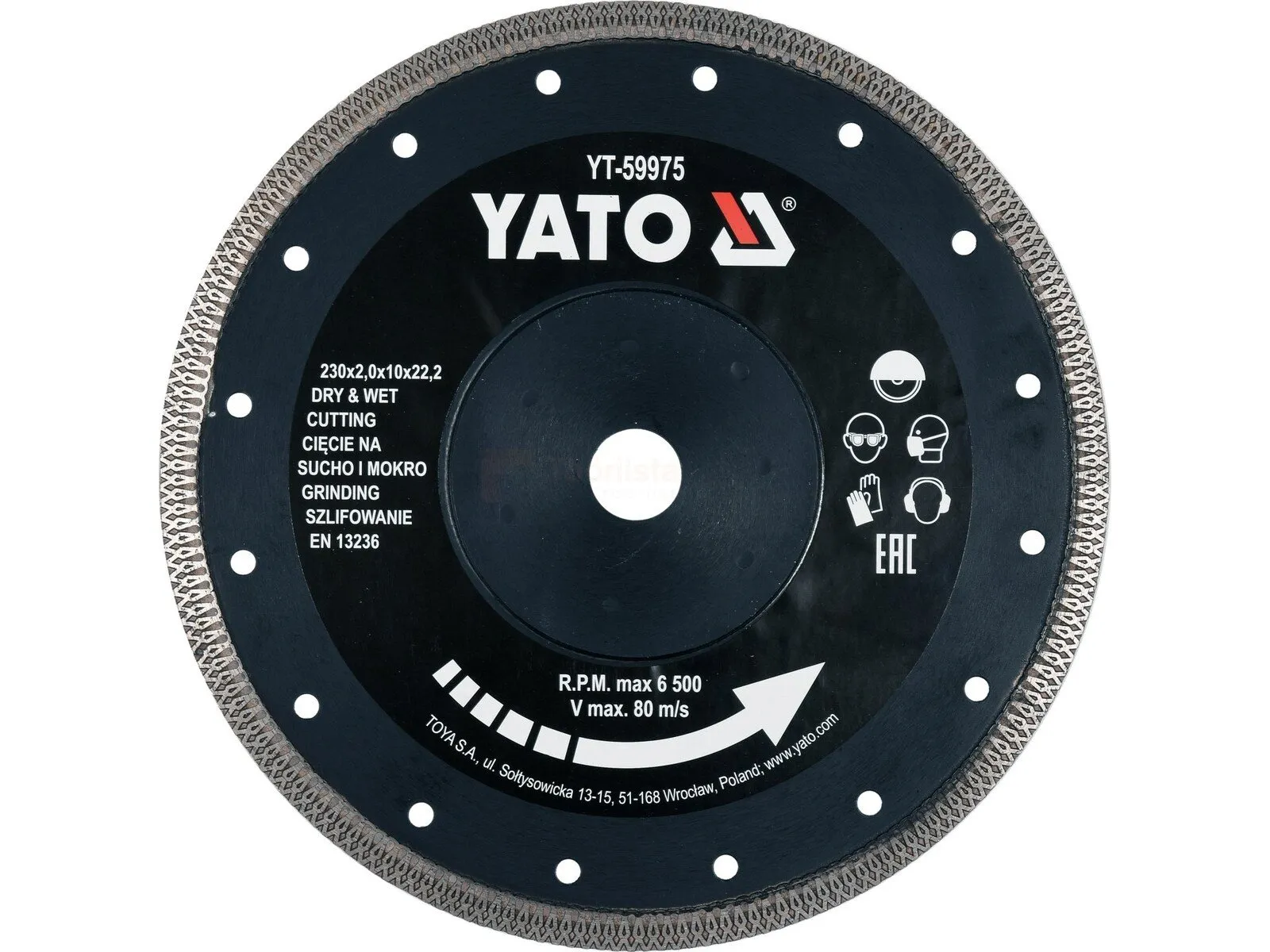

YATO diamond cutting disc for ceramics 230 x 22.2 mm

Material: 65Mn steel
Application: ceramic tiles, glazed tiles, stone tiles, glass, porcelain, ceramics, porcelain stoneware, roof tiles
Suitable for working: dry and wet cutting
Maximum rotation speed: 6500 rpm
Diameter: 230 mm
Maximum peripheral speed: 80 m/s
Cutting segment thickness: 2.0 mm
Cutting segment height: 10 mm
Cutting segment composition: Fe 20%, Cu 55%, Sn 7%, Ni 8%, other additives 10%, diamond coating 15%
Arbor diameter: 22.2 mm

The cutting disc is designed for precise and clean dry and wet cutting.

The 10 mm high cutting segment ensures a long service life of the disc.
A thinner cutting segment allows for faster and more precise cutting, reduces chipping of the cutting edges, and puts less strain on the angle grinder.
The cutting segment is made of cobalt binder material with optimal hardness and high-quality A-grade industrial diamond grains.
Allows precise grinding of tile edges at a 45° angle, even when working manually.
Precisely centered disc flange reduces lateral runout and ensures a clean cut without edge unevenness.
Suitable for chamfering the edges of porcelain stoneware tiles.
Allows cutting tile edges at a 45° angle.
